Product Overview

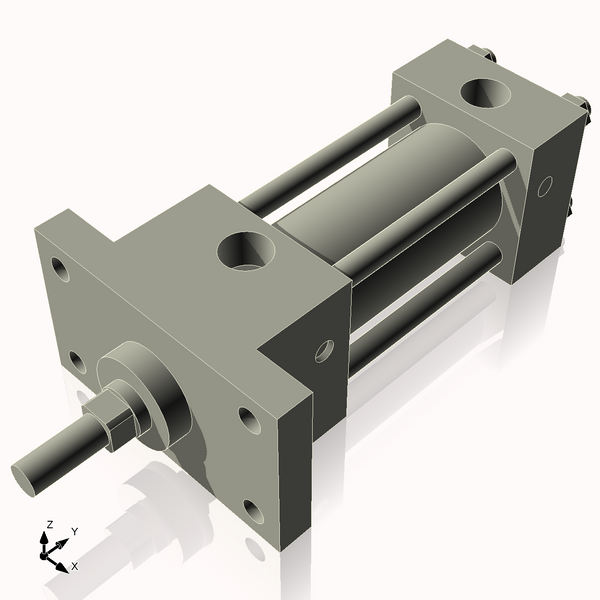

- Heavy Duty 250 PSI** Pneumatic Cylinder Line
- 1.125" Bore
- 1" Stroke
- MF1 Front Flange
- 0.500" Piston Rod
- Small Male Rod End with 5/16 - 24 Thread by 3/4" Long
- Cushion Adjusts On Front and Rear
- Cushion Adjusts In Positions: 2,6
- 1/4 NPT Porting in Positions 1,5
- Approx Shipping Weight: 4.125 lbs
Full Specifications:
Country of Manufacture: United States
Lead Time: Typically ships in 3-10 Business Days Check the Shipping Page for up to date info
Max Pressure (PSI): 250
Bore Size: 1-1/8" or 1.125 Inches
Mount: MF1 (FF) - Front Flange
Stroke (Inches): 1
Rod Type: Single Rod Double Acting
Piston Rod Size (Inches): 1/2 or .5
Rod Style: Male Rod End
Rod End Details: 5/16" - 24 x 3/4" Thread
Port Type: NPT
Port Thread: 1/4
Port Locations: 1,5
Cushion Style: Cushion Both
Cushion Adjust & Check Positions: 2,0,6,0
Seal Type: Standard
Weight: 4.125000
Tax Class: Taxable Goods
Estimated Push/Pull Weights:
*Force Extend @ 250psi (lbs): 249
*Force Extend @ 90psi (lbs): 89
*Force Retract @ 250psi (lbs): 199
*Force Retract @ 90psi (lbs): 72
* Force Note: Forces stated are theoretical maximums to use as guidelines. They are not guarantees.
Maximum Strokes:
The mounting style of this cylinder, in your application, determines the safe maximum stroke due to column strength restrictions. Mounting using an incorrect class could result in buckling or worse. Make sure mounting class stroke is verified when using any stroke over 11.64 inches.
Mounting Class 1 Maximum Stroke: 69.81"
Mounting Class 2 Maximum Stroke: 46.54"
Mounting Class 3 Maximum Stroke: 34.91"
Mounting Class 6 Maximum Stroke: 11.64"
All maximum strokes are base on using the cylinder at maximum operating pressure.
See the table to determine your mounting class on the Mounting and Column Strength Page.
Resources:
Download the Dimensioned Print Here: PartPrint.pdf
Download the Print In DXF: PartPrint.dxf
Download the 3D Model In Step Format Here: PartDrawing.stp
About the Cylinders Now Heavy Duty Hydraulic Cylinder Line:
This cylinder Is manfactured In the USA.
- ANSI, NFPA, JIC interchangeable dimensions
- Hydrodynamic In-board rod bearing For low friction And Long life
- Unique slipper seal piston For low friction, breakaway And Long life
- Abrasion resistant rod seal And wiper
- Studded rod End - 4 wrench flats
- Adjustable cushions available
Click Here to see all the advantages of the Heavy Duty Pneumatic Line.
