Product Overview

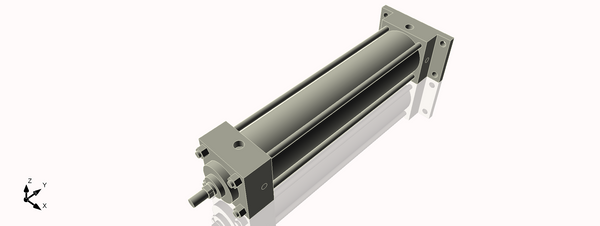

- Medium Duty 200 PSI** Pneumatic Cylinder Line
- 2.5" Bore
- 10" Stroke
- MF2 Rear Flange
- 5/8" Piston Rod
- Small Male Rod End With 7/16 - 20 Thread by 3/4" Long
- Non-Cushioned
- 1/4 NPT And are located In positions 1-5
- Approx Shipping Weight: 8.69 lb
Full Specifications:
Country of Manufacture: United States
Lead Time: Typically ships in 3-10 Business Days Check the Shipping Page for up to date info
Max Pressure (PSI): 200
Bore Size: 2.5"
Mount: MF2 Rear Flange
Stroke (Inches): 10"
Rod Type: Single Rod Double Acting
Piston Rod Size (Inches): 5/8"
Rod Style: Small Male Rod End
Rod End Details: 7/16 - 20 Thread by 3/4"
Port Type: NPT
Port Thread: 1/4
Port Locations: 1,5
Cushion Style: The cylinder is not cushioned.
Seal Type: Standard
Weight: 8.69 lb
Tax Class: Taxable Goods
Estimated Push/Pull Weights:
*Force Extend @ 200psi (lbs): 981.748
*Force Extend @ 90psi (lbs): 441.786
*Force Retract @ 200psi (lbs): 920.388
*Force Retract @ 90psi (lbs): 414.175
The mounting style of this cylinder, in your application, determines the safe maximum stroke due to column strength restrictions. Mounting using an incorrect class could result in buckling or worse. Make sure mounting class stroke is verified when using any stroke over 9.15 inches.
Mounting Class 1 Maximum Stroke: 54.88"
Mounting Class 2 Maximum Stroke: 36.59"
Mounting Class 3 Maximum Stroke: 27.44"
Mounting Class 6 Maximum Stroke: 9.15"
All maximum strokes are base on using the cylinder at maximum operating pressure.
See the table to determine your mounting class on the Mounting and Column Strength Page.
Resources:
Download the Dimensioned Print Here: PartPrint.pdf
Download the Print In DXF: PartPrint.dxf
Download the 3D Model In Step Format Here: PartDrawing.stp
About the Cylinders Now Medium Duty Pneumatic Cylinder Line
This cylinder Is manfactured In the USA.
- ANSI, NFPA, JIC interchangeable dimensions
- Lubed for life
- High tensile, special hard anodized aluminum tube
- Aluminum head and cap for weight reduction
- Economical OEM cylinders
- Cushioned front, rear or both ends available
Click Here to see all the advantages of the Medium Duty Hydraulic Line.
*Force Note: Forces stated are theoretical maximums to use as guidelines. They are Not guarantees.
**The A Medium Duty 200PSI Cylinder Line is constructed for medium duty applications, but the individual cylinder in the MA line may have a reduced PSI rating due to configured options. Refer to the "Max Pressure Rating" on the specific product and watch for titles stating the specific cylinder is Derated.
