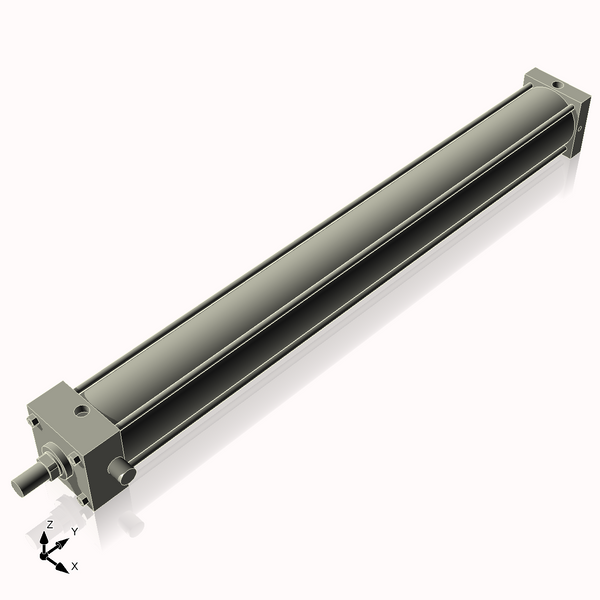

Product Overview
- Heavy Duty 250 PSI** Pneumatic Cylinder Line
- 4" Bore
- 36" Stroke
- MT1 Front Trunnion
- 1-3/8" Piston Rod
- Small Male Rod End With 1 - 14 Thread by 1-5/8" Long
- Non-Cushioned
- 1/2 NPT And are located In positions 1-5
- Approx Shipping Weight: 72.52872 lb
Full Specifications:
Country of Manufacture: United States
Lead Time: Typically ships in 3-10 Business Days Check the Shipping Page for up to date info
Max Pressure (PSI): 250
Bore Size: 4"
Mount: MT1 Front Trunnion
Stroke (Inches): 36"
Rod Type: Single Rod Double Acting
Piston Rod Size (Inches): 1-3/8"
Rod Style: Small Male Rod End
Rod End Details: 1 - 14 Thread by 1-5/8"
Port Type: NPT
Port Thread: 1/2
Port Locations: 1,5
Cushion Style: The cylinder is not cushioned.
Seal Type: Standard
Weight: 72.52872 lb
Tax Class: Taxable Goods
Estimated Push/Pull Weights:
*Force Extend @ 250psi (lbs): 3141.593
*Force Extend @ 90psi (lbs): 1130.973
*Force Retract @ 250psi (lbs): 2770.369
*Force Retract @ 90psi (lbs): 997.333
The mounting style of this cylinder, in your application, determines the safe maximum stroke due to column strength restrictions. Mounting using an incorrect class could result in buckling or worse. Make sure mounting class 3 is verified.
Mounting Class 3 Maximum Stroke: 74.24"
All maximum strokes are base on using the cylinder at maximum operating pressure.
See the table to determine your mounting class on the Mounting and Column Strength Page.
Resources:
Download the Dimensioned Print Here: PartPrint.pdf
Download the Print In DXF: PartPrint.dxf
Download the 3D Model In Step Format Here: PartDrawing.stp
About the Cylinders Now Heavy Duty Pneumatic Cylinder Line
This cylinder Is manfactured In the USA.
- ANSI, NFPA, JIC interchangeable dimensions
- Hydrodynamic In-board rod bearing For low friction And Long life
- Unique slipper seal piston For low friction, breakaway And Long life
- Abrasion resistant rod seal And wiper
- Studded rod end - 4 wrench flats
- Adjustable cushions available
Click Here to see all the advantages of the Heavy Duty Hydraulic Line.
*Force Note: Forces stated are theoretical maximums to use as guidelines. They are Not guarantees.
**The A Heavy Duty 250PSI Cylinder Line is constructed for heavy duty applications, but the individual cylinder in the A line may have a reduced PSI rating due to configured options. Refer to the "Max Pressure Rating" on the specific product and watch for titles stating the specific cylinder is Derated.
