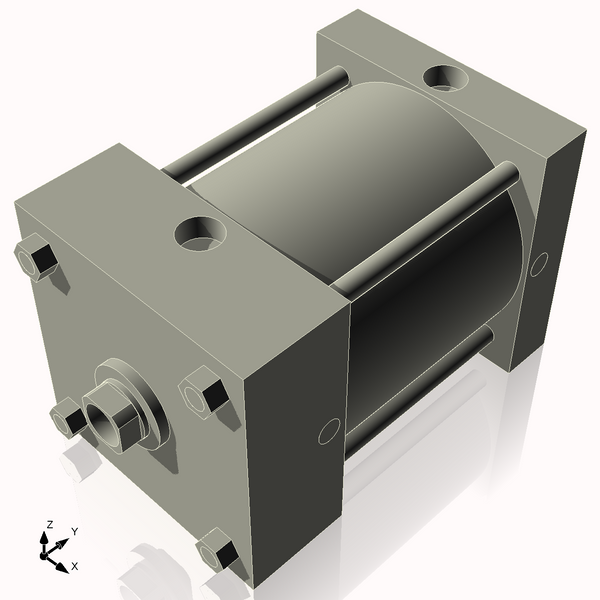

6" Bore - 4" Inch stroke - Heavy Duty Pneumatic Cylinder with MP1 Fixed Clevis - Model: CN6AC4NCK(S4)

Cylinders Now

(No reviews yet) Write a Review
$1,328.18
SKU:
CN6AC4NCK(S4)
Condition:
New
Width:
13.13 (in)
Height:
6.50 (in)
Depth:
6.50 (in)
Bore:
6" Bore
Mount:
MP1 Fixed Clevis: C
Stroke:
4" Stroke
Rod Type:
Single
Piston Rod Dia:
1-3/8" Rod
Rod Style:
Style4: Short Female Rod End
Rod End Details:
1 - 14 x 1-5/8
Max Pressure Rating:
250 PSI Max
Cushion Style:
NC: Non Cushion
Cushion Adjust & Check Positions:
NA
Port Type:
NPT
Port Thread:
3/4
Port Locations:
1-5
Seal Type:
Standard
MPN:
CN6AC4NCK(S4)
Manufacturer:
Cylinders Now
Adding to cart… The item has been added

Product Overview

  • Heavy Duty 250 PSI** Pneumatic Cylinder Line
  • 6" Bore
  • 4" Stroke
  • MP1 Fixed Clevis
  • 1-3/8" Piston Rod
  • Short Female Rod End With 1 - 14 Thread by 1-5/8" Long
  • Non-Cushioned
  • 3/4 NPT And are located In positions 1-5
  • Approx Shipping Weight: 83.6 lb



Full Specifications:

Country of Manufacture: United States
Lead Time: Typically ships in 3-10 Business Days Check the Shipping Page for up to date info
Max Pressure (PSI): 250
Bore Size: 6"
Mount: MP1 Fixed Clevis
Stroke (Inches): 4"
Rod Type: Single Rod Double Acting
Piston Rod Size (Inches): 1-3/8"
Rod Style: Short Female Rod End
Rod End Details: 1 - 14 Thread by 1-5/8"
Port Type: NPT
Port Thread: 3/4
Port Locations: 1,5
Cushion Style: The cylinder is not cushioned.
Seal Type: Standard
Weight: 83.6 lb
Tax Class: Taxable Goods

Estimated Push/Pull Weights:

*Force Extend @ 250psi (lbs): 7068.583
*Force Extend @ 90psi (lbs): 2544.69
*Force Retract @ 250psi (lbs): 6697.36
*Force Retract @ 90psi (lbs): 2411.05

The mounting style of this cylinder, in your application, determines the safe maximum stroke due to column strength restrictions. Mounting using an incorrect class could result in buckling or worse. Make sure mounting class 5 is verified.
Mounting Class 5 Maximum Stroke: 24.75"
All maximum strokes are base on using the cylinder at maximum operating pressure.
See the table to determine your mounting class on the Mounting and Column Strength Page.

Resources:

Download the Dimensioned Print Here: PartPrint.pdf

Download the Print In DXF: PartPrint.dxf

Download the 3D Model In Step Format Here: PartDrawing.stp



About the Cylinders Now Heavy Duty Pneumatic Cylinder Line

This cylinder Is manfactured In the USA.

  • ANSI, NFPA, JIC interchangeable dimensions
  • Hydrodynamic In-board rod bearing For low friction And Long life
  • Unique slipper seal piston For low friction, breakaway And Long life
  • Abrasion resistant rod seal And wiper
  • Studded rod end - 4 wrench flats
  • Adjustable cushions available

Click Here to see all the advantages of the Heavy Duty Hydraulic Line.

*Force Note: Forces stated are theoretical maximums to use as guidelines. They are Not guarantees.
**The A Heavy Duty 250PSI Cylinder Line is constructed for heavy duty applications, but the individual cylinder in the A line may have a reduced PSI rating due to configured options. Refer to the "Max Pressure Rating" on the specific product and watch for titles stating the specific cylinder is Derated.
