Product Overview

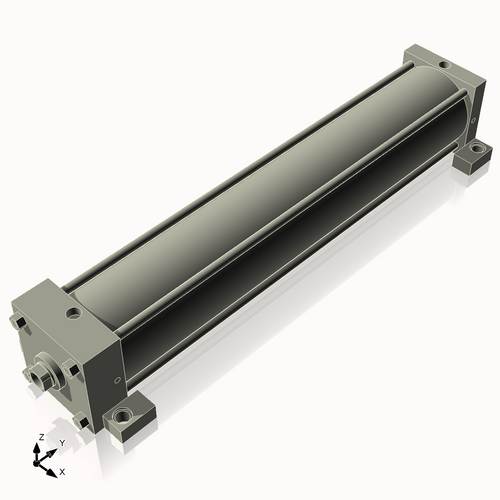

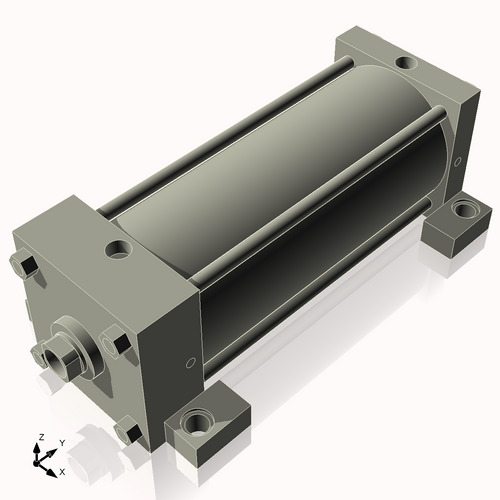

<p> Click "More Information" too see detailed specifications on this cylinder.</p><p>This cylinder features a 5 Inch Bore, with 4 Inches Of Stroke using an MS2 Side Lug. The rod measures 1-3/8 inches in diameter and has a Short Female Rod End with 1 - 14 Thread by 1-5/8 inches Long. The cylinder is cushioned in the front and rear. It has cushion adjusts in positions 2 and 6. The ports are 1/2 NPT and are located In positions 1,5. See position diagram <a title="Position Diagram" href="https://cylindersnow.com/media/wysiwyg/PortLocations.JPG" target="_blank" rel="noopener">position diagram.</a></p><p>The mounting style of this cylinder, in your application, determines the safe maximum stroke due to column strength restrictions. Mounting using an incorrect class could result in buckling or worse. Make sure mounting class stroke is verified when using any stroke over 19.8 inches.<br>Mounting Class 1 Maximum Stroke: 118.79"<br>Mounting Class 2 Maximum Stroke: 79.19"<br>Mounting Class 3 Maximum Stroke: 59.4"<br>Mounting Class 6 Maximum Stroke: 19.8"<br>All maximum strokes are base on using the cylinder at maximum operating pressure.<br>See the table to determine your mounting class on the <a href="https://cylindersnow.com/hydraulic-and-pneumatic-cylinder-mounting-and-column-strengths-reference#fixedmountings">Mounting and Column Strength</a> Page.</p><p><strong>Resources : </strong></p><p>Download the Dimensioned Print Here: <a href=" https://cylindersnow.com/media/wysiwyg/prints/A/CN5ASL4CCK(1.375S4).pdf" target="_blank">PartPrint.pdf</a></p><p>Download the Print In DXF: <a href = "https://cylindersnow.com/media/wysiwyg/dxf/A/CN5ASL4CCK(1.375S4).dxf" target="_blank">PartPrint.dxf</a></p><p>Download the 3D Model In Step Format Here: <a href=" https://cylindersnow.com/media/wysiwyg/stp/A/CN5ASL4CCK(1.375S4).stp" target="_blank">PartDrawing.stp</a></p><p></p></br><p>This cylinder Is manfactured In the USA.</p><ul Class="compnofloat"><li> ANSI, NFPA, JIC interchangeable dimensions</li><li> Hydrodynamic In-board rod bearing For low friction And Long life</li><li> Unique slipper seal piston For low friction, breakaway And Long life</li><li> Abrasion resistant rod seal And wiper</li><li> Studded rod End - 4 wrench flats</li><li>Adjustable cushions available</li></ul><p><a title="Heavy Duty Pneumatic Line" href="https://cylindersnow.com/heavy-duty-pneumatic-model-line">Click Here</a> to see all the advantages of the Heavy Duty Pneumatic Line.</p>
