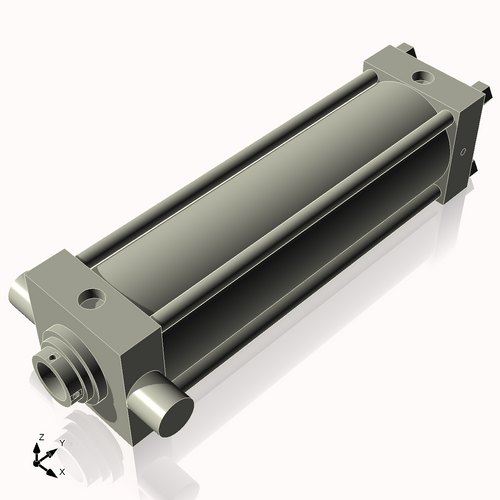

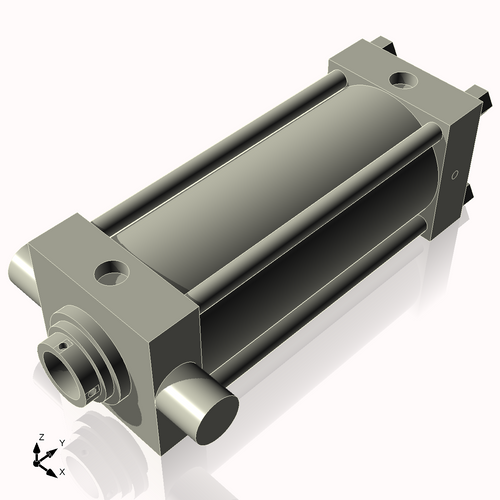

8" Bore - 27" Inch Stroke - Heavy Duty Hydraulic Cylinder with MT1 Front Trunnion - Model: CN8HHTF27CCK(4S4) Derated to 2000 PSI

Cylinders Now

(No reviews yet) Write a Review
40.00 (in)
9.50 (in)
15.50 (in)
8" Bore
MT1 Front Trunnion: TF
27" Stroke
Rod Type:
Piston Rod Dia:
4" Rod
Rod Style:
Style4: Short Female Rod End
Rod End Details:
3 - 12 x 4
Max Pressure Rating:
2000 PSI Max
Cushion Style:
CC: Cushion Both
Cushion Adjust & Check Positions:
Port Type:
Port Thread:
Port Locations:
Seal Type:
Cylinders Now
Adding to cart… The item has been added

Product Overview

  • HH Heavy Duty 3000 PSI** Hydraulic Cylinder Line
  • 8" Bore
  • 27" Stroke
  • MT1 Front Trunnion
  • 4" Piston Rod
  • Short Female Rod End With 3 - 12 Thread by 4" Long
  • Cushion Adjusts/Checks On Front and Rear
  • Cushion Adjust/Checks In Positions: 3,3,6,8
  • -24 SAE And are located In positions 1-5
  • Approx Shipping Weight: 611.0698 lb


Full Specifications:

Country of Manufacture: United States
Lead Time: Typically ships in 3-10 Business Days Check the Shipping Page for up to date info
Max Pressure (PSI): 2000
Bore Size: 8"
Mount: MT1 Front Trunnion
Stroke (Inches): 27"
Rod Type: Single Rod Double Acting
Piston Rod Size (Inches): 4"
Rod Style: Short Female Rod End
Rod End Details: 3 - 12 Thread by 4"
Port Type: SAE
Port Thread: -24
Port Locations: 1,5
Cushion Style: The cylinder is cushioned in the front and rear. It has cushion adjust and checks in positions 3, 3, 6 and 8.
Seal Type: Standard
Weight: 611.0698 lb
Tax Class: Taxable Goods

Estimated Push/Pull Weights:

*Force Extend @ 3000psi (lbs): 0
*Force Extend @ 2500psi (lbs): 0
*Force Extend @ 2000psi (lbs): 100530.965
*Force Extend @ 1500psi (lbs): 75398.224
*Force Extend @ 1000psi (lbs): 50265.482
*Force Extend @ 500psi (lbs): 25132.741
*Force Retract @ 3000psi (lbs): 0
*Force Retract @ 2500psi (lbs): 0
*Force Retract @ 2000psi (lbs): 75398.224
*Force Retract @ 1500psi (lbs): 56548.668
*Force Retract @ 1000psi (lbs): 37699.112
*Force Retract @ 500psi (lbs): 18849.556

The mounting style of this cylinder, in your application, determines the safe maximum stroke due to column strength restrictions. Mounting using an incorrect class could result in buckling or worse. Make sure mounting class 3 is verified.
Mounting Class 3 Maximum Stroke: 111.07"
All maximum strokes are base on using the cylinder at maximum operating pressure.
See the table to determine your mounting class on the Mounting and Column Strength Page.


Download the Dimensioned Print Here: PartPrint.pdf

Download the Print In DXF: PartPrint.dxf

Download the 3D Model In Step Format Here: PartDrawing.stp


About the Cylinders Now Heavy Duty Hydraulic Cylinder Line

This cylinder Is manfactured In the USA.

  • ANSI, NFPA, JIC interchangeable dimensions
  • Hydrodynamic In-board rod bearing For low friction And Long life
  • Unique slipper seal piston For low friction, breakaway And Long life
  • Abrasion resistant rod seal And wiper
  • Studded rod end - 4 wrench flats
  • Adjustable cushions available

Click Here to see all the advantages of the Heavy Duty Hydraulic Line.

*Force Note: Forces stated are theoretical maximums to use as guidelines. They are Not guarantees.
**The HH Heavy Duty 3000PSI Cylinder Line is constructed for heavy duty applications, but the individual cylinder in the HH line may have a reduced PSI rating due to configured options. Refer to the "Max Pressure Rating" on the specific product and watch for titles stating the specific cylinder is Derated.
